Indoor Rental Screen Series LED Display

Brief Description:

AS Series can be easily assembled by one person with multiple functions and flexible installation; the refresh rate reaches 3840Hz, the contrast ratio can reach 5000:1, and the grayscale is 16 bit. And it also delivers large, clear live match footage that can create a sense of immersive scenes and subvert the traditional visual experience.


  • Product Series: AS Series
  • Pixel Pitch: 1.95mm, 2.604mm, 2.97mm, 3.91mm, 4.81mm
  • Cabinet Size: 500mm*1000mm*83mm, 500mm*750mm*83mm, 500mm*500mm*83mm
  • Maintenance Method: Front/Rear maintenance
  • Product Detail

    Product Tags

    Product Introduction

    (1)Lightweight design, easy assembly
    The weight of a single box is only 7.5KG, which can be easily assembled by one person.

    (2)Four-level energy-saving technology
    Level I dynamic energy saving: when the signal is not displayed, the part of the drive circuit of the constant flow tube chip is turned off;
    Level Ⅱ black screen energy saving: when the display screen is completely black, the static consumption current of the chip drops from 6mA to 0.6mA;
    Level III full-screen energy saving: when the low level is maintained for 300ms, the static consumption current of the chip drops from 6mA to 0.5mA;
    Level Ⅳ shunt power supply step-down energy saving: the current first passes through the lamp bead, and then to the negative electrode of the IC, so that the forward voltage drop becomes smaller, and the conduction internal resistance also becomes smaller.

    (3)Real color, high-definition visual display
    The refresh rate reaches 3840Hz, the contrast ratio can reach 5000:1, and the grayscale is 16 bit. The SMD LED lamp beads composed of red, green and blue have good consistency and the viewing angle can reach more than 140°.

    (4)One screen with multiple functions and flexible installation
    It supports the installation of straight-face screens, curved screens, right-angle screens, and Rubik's Cube screens, with two installation methods: seat mount and ceiling mount, to meet the needs of different customers and different scenarios.

    (5)Power current backup power supply, never black screen
    Adjacent cabinets can supply power to each other, avoiding the black screen of the cabinet caused by power line failure, power aviation plug failure, power failure and other reasons.

    (6)Drive scheme
    It has the functions of blanking above and below the column, high refresh rate, improvement of darkening of the first row, low gray color cast, improvement of pitting and other functions.

    (7)Bump protection corner
    The protective corners can effectively protect the four corners of the cabinet, reducing the problems of bumping off the lamp and damage to the lamp beads and lampshade during transportation.

    (8)Stable and reliable performance
    Good heat dissipation, low temperature rise, support low-voltage switching, safe and reliable, and long service life.

    (9)Efficient maintenance
    Fully modular design (cabinets, modules, detachable power box), support front and rear maintenance, convenient and quick.

    Structure Appearance

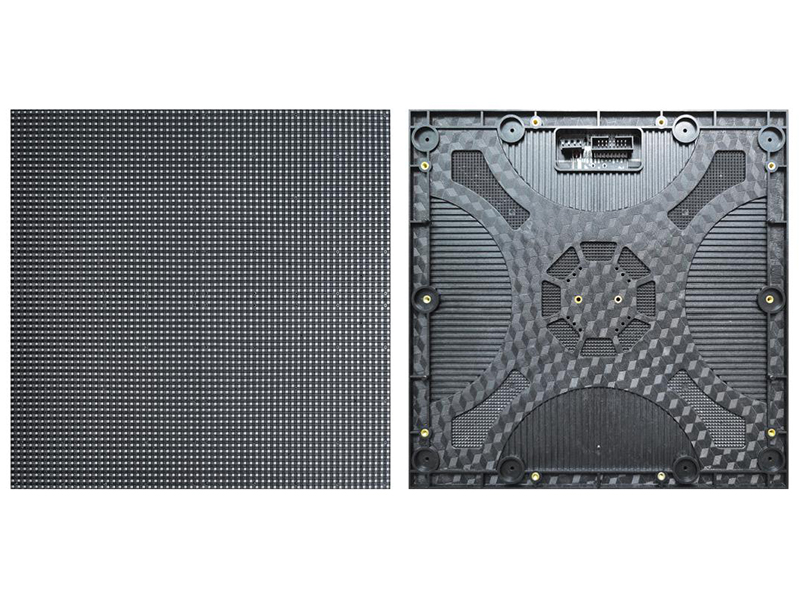

    Appearance - Module(250*250*15mm)

    p1

    Appearance - Die-casting Aluminum Box( 500*500*100mm)

    p2

    Detailed Parameters

    Model Number

    AS1.95

    AS2.604

    AS2.97

    AS3.91

    AS4.81

    Pixel Structure(SMD)

    1415

    1415

    1415

    1921

    2525

    Pixel Pitch

    1.95mm

    2.604mm

    2.97mm

    3.91mm

    4.81mm

    Module Resolution(W×H)

    128*128

    96*96

    84*84

    64*64

    52*52

    Module Size(mm)

    250*250*18

    Module Weight(Kg)

    0.7(Plastic module) , 1(Die-casting aluminum module)

    Cabinet Module Composition

    2*4/2*3/2*2

    Cabinet Size(mm)

    500*1000*83 / 500*750*83 / 500*500*83

    Cabinet Resolution(W×H)

    256*512/
    256*384/
    256*256

    192*384/
    192*288/
    192*192

    168*336/
    168*252/
    168*168

    128*256/
    128*192/
    128*128

    104*208/
    104*156/
    104*104

    Cabinet Area(m²)

    0.5 / 0.375 / 0.25

    Cabinet Weight(Kg)

    13.6/10.2/6.8 (Plastic module), 16/12/8(Die-casting aluminum module)

    Cabinet Material

    Plastic/Die-casting aluminum (module), Aluminum profile (casing)

    Pixel Density(dots/m²)

    262144

    147456

    112896

    65536

    43264

    IP Rating

    IP66

    Single-point Chromaticity
    /Brightness Correction

    With

    White Balance Brightness(cd/m²)

    4500

    Color Temperature(K)

    6500-9000

    Viewing Angle
    (Horizontal/Vertical)

    140°/120°

    Contrast Ratio

    5000:1

    Maximum Power Consumption(W/m²)

    700

    Average Power Consumption(W/m²)

    235

    Maintenance Type

    Front/Rear Maintenance

    Frame Rate

    50&60Hz

    Scanning Mode
    (Constant Current Drive)

    1/32s

    1/24s

    1/21s

    1/10s

    1/10s

    Gray Scale

    Arbitrary within 65536 levels of gray(16bit)

    Refresh Frequency (Hz)

    3840

    Color Processing Bits

    16bit

    Life Typical Value(h)

    50000

    Operating Temperature/Humidity Range

    -10℃-50℃/10%RH-98%RH(No Condensation)

    Storage Temperature/Humidity Range

    -20℃-60℃/10%RH-98%RH(No Condensation)

    Packing List

    Package

    Quantity

    Unit

    Display Screen

    1

    Set

    Instruction Manual

    1

    Portion

    Certificate

    1

    Portion

    Warranty Card

    1

    Portion

    Construction Precautions

    1

    Portion

    Accessories

    Accessories Category

    Name


    Assembling Accessories

    Power supply, signal line

    pd1

    Sleeve, screw connecting piece

     pd3

    Installation

    Kit Installation

    Kit Mounting Hole Diagram

    pp1

    Cabinet Installation

    Cabinet Installation Diagram

    pp2

    Installation

    Cabinet Front Installation

    Exploded Diagram of Front Installation of Cabinet

    d1

    The Cabinet Before the Installation of the Finished Picture

    d2

    Display Installation

    Connection Schematic

    Display Connection Diagram

    p3

    Instructions

     Precautions

    Project

    Precautions

    Temperature Range

    Working temperature control at -10℃~50℃

    Storage temperature control at -20℃~60℃

    Humidity Range

    Working humidity control at 10%RH~98%RH

    Storage humidity control at 10%RH~98%RH

    Anti-electromagnetic Radiation

    The display screen should not be placed in an environment with large electromagnetic radiation interference, which may cause abnormal display of the screen

    Anti-static

    The metal casing of the power supply, box body, and screen body needs to be well grounded, and the grounding resistance is less than 10Ω to avoid damage to electronic devices caused by static electricity

    Instructions

    Project

    Instructions for use

    Static Protection

    Installers need to wear electrostatic rings and electrostatic gloves, and all tools must be strictly grounded during the assembly process.

    Connection Method

    The module has positive and negative silk screen marks, which cannot be reversed, and it is strictly forbidden to connect to 220V AC.

    Operation

    Method

    It is strictly forbidden to assemble modules, cabinets, and the entire screen when the power is on, and it must be operated under the condition of complete power failure to protect personal safety; when the display is lit, personnel are prohibited from touching it, so as to avoid electrostatic breakdown caused by human body friction. components.

    Disassembly and Transportation

    Do not drop, push, squeeze, or press the module to prevent the module from falling and bumping, so as to avoid problems such as kit rupture and damage to the lamp beads.

    Environmental Inspection

    The display screen needs to be equipped with a temperature and humidity meter on site to monitor the surrounding environment of the screen body, in order to find out whether the display screen is affected by moisture, water vapor and other problems in time.

    Use of  Display Screen

    The ambient humidity is in the range of 10%RH to 65%RH. It is recommended to turn on the screen once a day and use it for more than 4 hours each time to remove the moisture from the display screen.

    When the ambient humidity is above 65%RH, the environment needs to be dehumidified, and it is recommended to use it normally for more than 8 hours a day, and close the doors and windows to prevent the display from being damaged by moisture.

    When the display screen has not been used for a long time, it is necessary to preheat and dehumidify the display screen before use, so as to avoid damage to the lamp tube caused by moisture. The specific method: 20% brightness for 2 hours, 40% brightness for 2 hours, 60% brightness for 2 hours 2 hours, 80% brightness for 2 hours, 100% brightness for 2 hours, so that the brightness is gradually aging.

    Application Field

    It is suitable for all indoor and outdoor places, such as: exhibitions, stage performances, entertainment activities, government meetings, various business meetings,etc.

    pp3
    d3
